Hackberry, Mediterranean

celtis australis, Cannabaceae, Angiospermae (Hardwood)

reference picture – see below for more pictures

Other names: Bawe, Odou vrai, Édou, Kiliakamba, Celtis, Lohonfé, Engo, Esa-biri, Esa-kokoo, Esa-kosua, Shiunza, Lokonfi, Dunki, Ita, Ohia, Zuwo, Ekembe bakaswa, Namanuka, Balzé, Bolundé, Kayombo

Chatoyance was measured by the chatometry.com team using the PZC method. The statistics for this specific timber are hereby summarized to provide an evaluation of data robustness:
Number of sources for samples: 1
Number of individual trees analyzed: 3
Number of specimens: 6
Number of measurements: 18
Max PZC read (of all measurements): 14.1
Min PZC read (of all measurements): 9.9
Max PZC average on one log: 13.5
Min PZC average on one log: 11.1
PZC Average of all logs: 12.2

Species: celtis australis
Family: Cannabaceae
Clade: Angiospermae
Description: Celtis australis, the European nettle tree, is a medium-sized deciduous tree characterized by its smooth, grey, beech-like bark and rough, serrated, ovate leaves with an asymmetrical base. It produces small, dark purple, edible drupes in autumn.
Other Local Names: Bawe, Odou vrai, Édou, Kiliakamba, Celtis, Lohonfé, Engo, Esa-biri, Esa-kokoo, Esa-kosua, Shiunza, Lokonfi, Dunki, Ita, Ohia, Zuwo, Ekembe bakaswa, Namanuka, Balzé, Bolundé, Kayombo

Reference Colour: Yellow brown
Texture: Medium
Grain: Straight or interlocked
Interlocked Grain: Slight
Notes: Yellowish white with greenish veins in the innermost part of the logs. Particularly unpleasant odour when green or rewetted. Sometimes greenish discoloration in the innermost part of the logs.

Diameter: 70÷90cm
Density @12% MC: 720kg/m³
Janka Hardness: 1500lbf
Crushing Strength @12%MC: 59MPa
Static Bending Strength @12%MC: 111MPa
Longitudinal Modulus of Elasticity E: 16.2GPa
Volumetric Shrinkage Coefficient: 0.45% per %
Total Tangential Shrinkage TS: 7.4%
Total Radial Shrinkage TS: 4%
T/R Anisotropy Ratio: 1.9-
Fibre Saturation Point: 26%
Thermal Conductivity: 0.24W/mk
Lower Heating Value: 18920KJ/Kg
Sapwood Demarcation: Not clearly demarcated

Resistance to Decay: Class 5 – non-durable DIANIA Cross sections of Celtis adolfi-friderici
Resistance to Dry Wood Borers: Class S – susceptible (risk in all the wood)
Resistance to Termites: Class S – susceptible
Treatability: Class 1 – treatable
Use Class Covered by Natural Durability: Class 1 – inside (no risk of dampness)
Durability Notes: Very prone to blue stain.

Log Buoyancy: Floats
Log Conservation: Low (treatment necessary)
Drying Rate: Slow
Drying Risk of Distortion: High risk
Drying Risk of Case Hardening: No known specific risk
Drying Risk of Checking: High risk

Blunting Effect: Fairly high
Sawing Tooth: Stellite-tipped
Machining Tool: Tungsten carbide
Suitability for Peeling: Good
Suitability for Slicing: Good
Sawing Machining Notes: Possible sawing and machining difficulties if there is interlocked grain. In this case, special tools are recommended. Sometimes, high silica content for Celtis tessmanii.
Assembly Nailing Screwing: Good but pre-boring necessary
Assembly Notes: Tends to split with nailing.
End Uses: Matches, Veneer for interior of plywood, Turned goods, Panelling, Heavy carpentry, Interior joinery, Formwork, Built-in furniture or mobile item, Boxes and crates, Moulding, Stairs (inside), Flooring, Veneer for back or face of plywood, Sliced veneer, Vehicle or container flooring

Source 1: Tropical Timber Atlas, Editions Quae, e-ISBN 978-2-7592-2770-9

Pictures – each from a different individual tree:

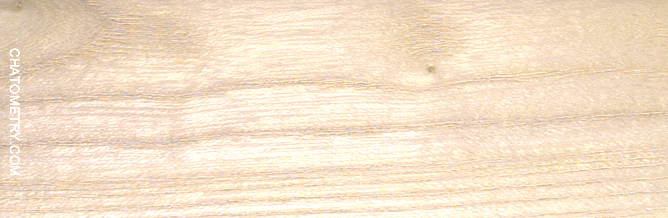

Log 1 (from [Source 92]) – PZC = 11.9

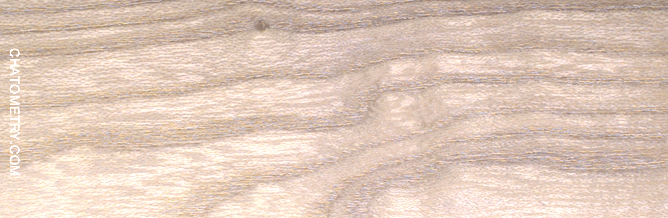

Log 2 (from [Source 92]) – PZC = 13.5

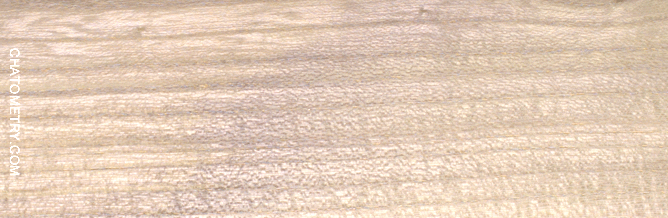

Log 3 (from [Source 92]) – PZC = 12.3
